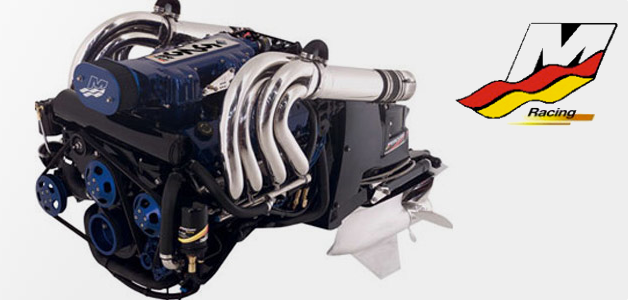

Mercury Racing HP 525 EFI

Mercury Racing - HP 525 EFI
HP:
525 (410kW)
Full Throttle RPM:
4800—5200
Displacement Liter/CID:
8.2/502
Bore & Stroke (in/mm):
4.47 x 4.00 / 113 x 102
Compression Ratio:
8.75:1
Cylinders:
V8
Alternator Amp/Watt:
65 / 917
Ignition System:
PCM 03 Distributorless
Fuel System:
MPI
Fuel Requirements:
87 Posted Octane (R+M)/2 (92 RON) International
Transmission:
(Six) w/Huber 600 Series
Drive Unit:
Bravo One XR, Bravo One XR Sport Master (Std. or Short), Bravo Three XR or Dry-Sump Six Drive
Gear Ratio:
Bravo — 1.26:1, 1.35:1, 1.50:1 (Right Hand or Left Hand); Dry–Sump Six — Application Dependent
Length (in/mm):
34.2/1003
Width (in/mm):
32.9/864
Height (in/mm):
23.7/610
Weight (lbs/kg):
1201/545
