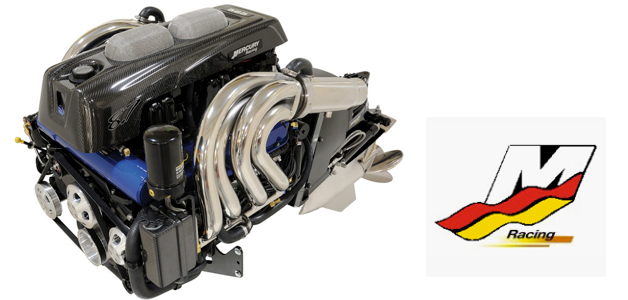

Mercury Racing HP 565

HP:

565 (421 kW)

Full Throttle RPM:

5000—5400

Displacement Liter/CID:

533/8.7

Bore & Stroke (in/mm):

4.466 (113 mm) x 4.25 (108 mm)

Compression Ratio:

8.7:1

Cylinders:

V–8

Alternator Amp/Watt:

90/1269

Ignition System:

1 X PCM; 1 X TCM

Fuel System:

Sequential Fuel Injection

Fuel Requirements:

89 Octane Minimum (R + M)/2

Drive Unit:

Bravo One XR, Bravo One XR Sport Master (Std. or Short)

Gear Ratio:

1.35:1, 1.50:1

Length (in/mm):

34.2/869 (Transom Mount to Front of Engine)

Width (in/mm):

33.8/858

Height (in/mm):

26.9/684 (From Crankshaft Centerline)

Weight (lbs/kg):

1201/545
